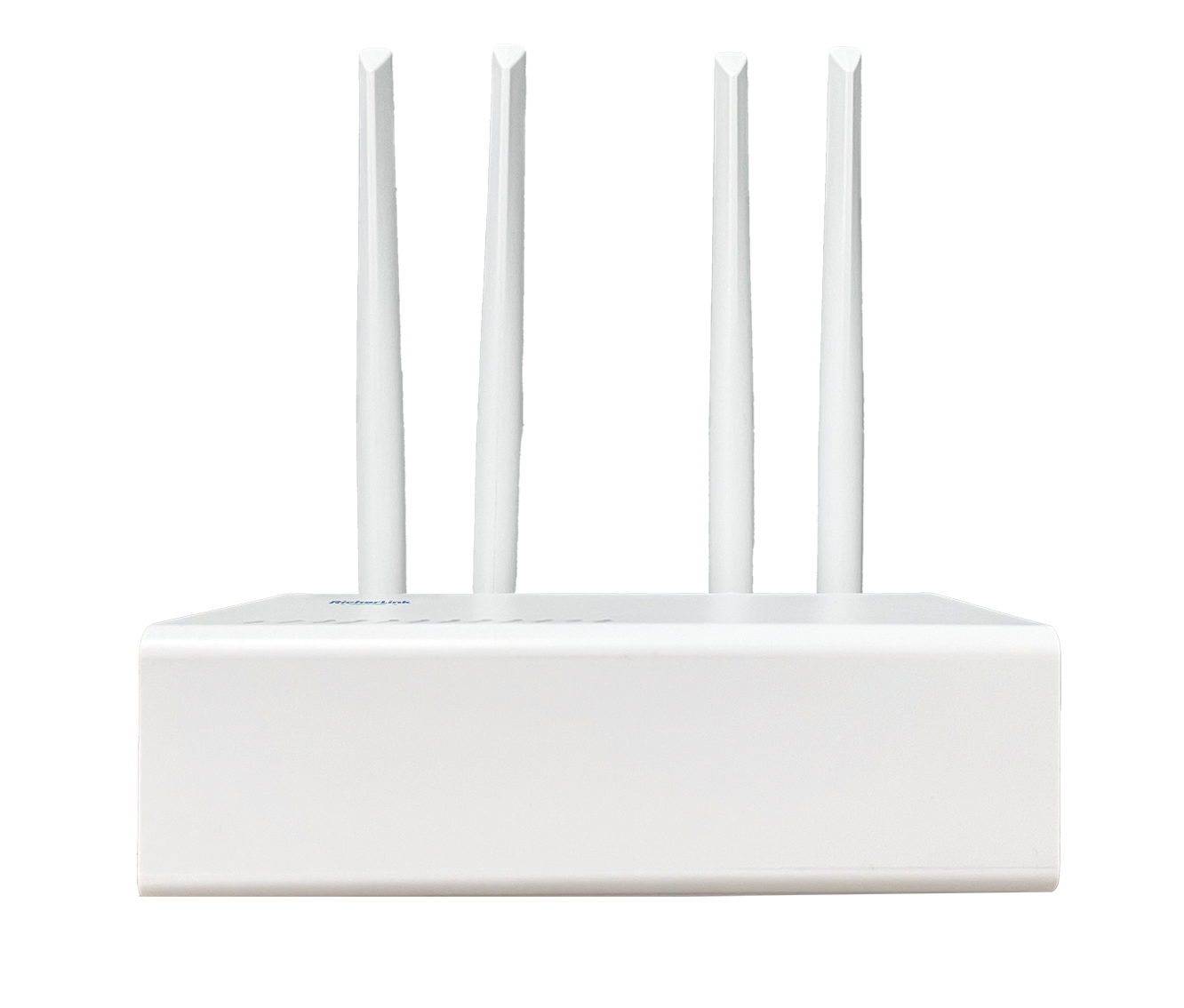

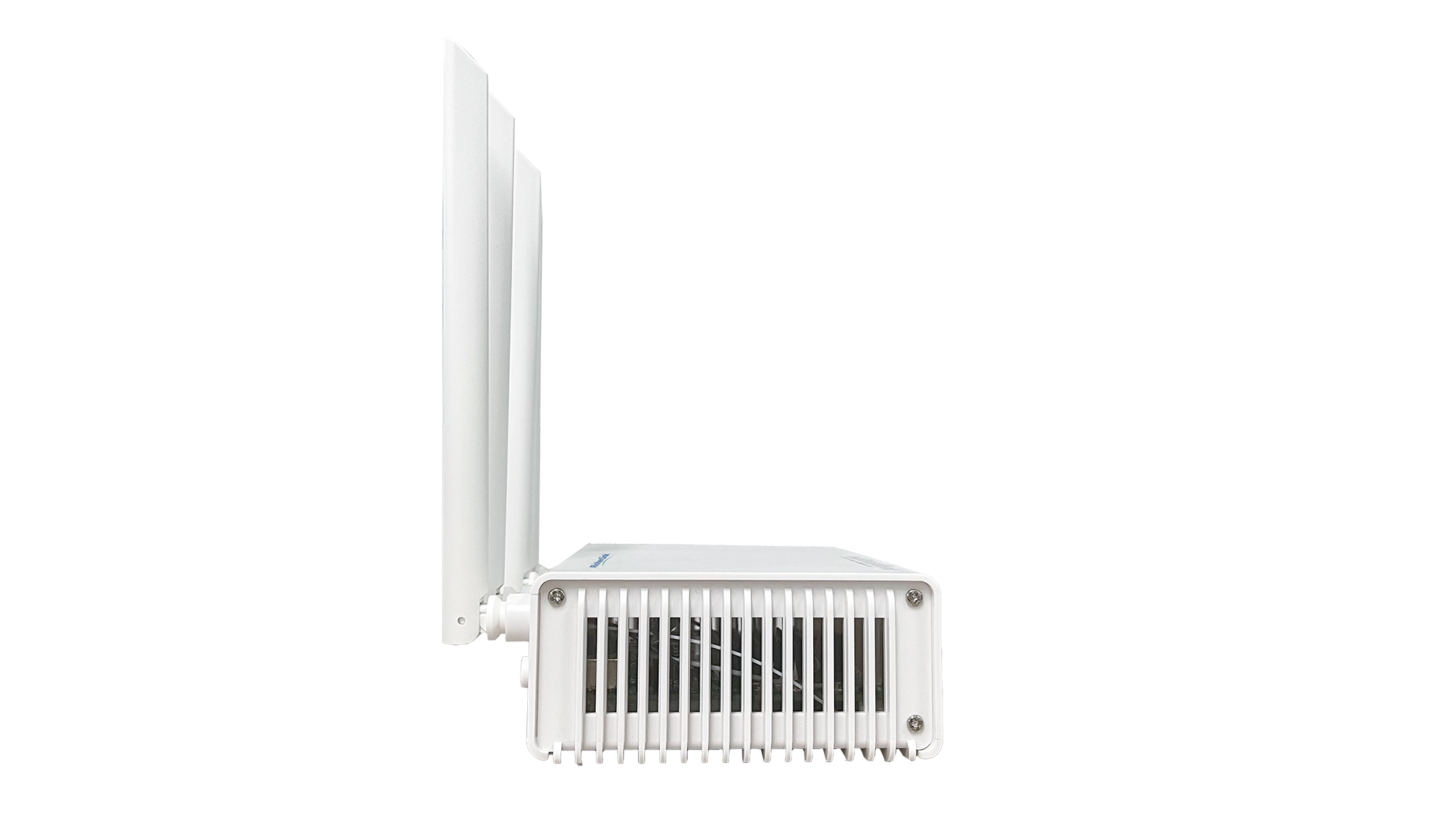

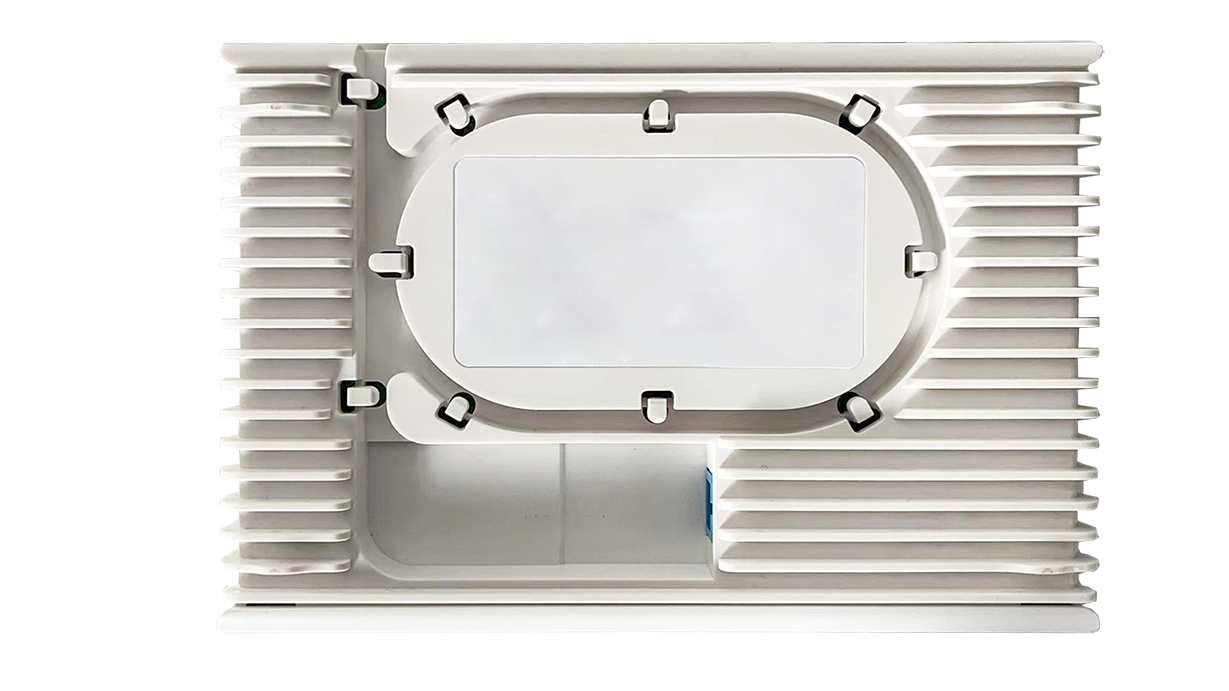

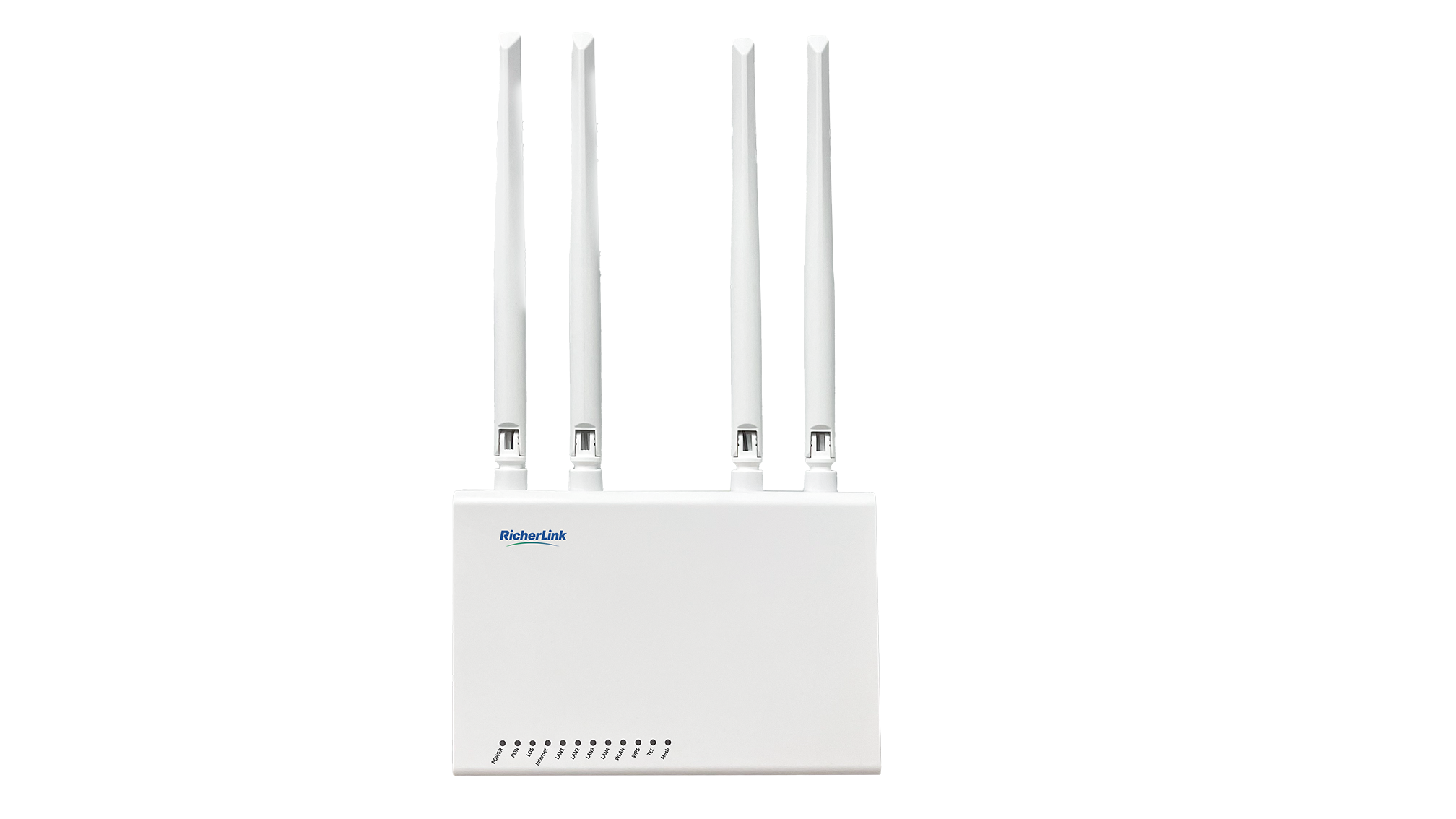

RL841GWV-AX3

RL841GWV-AX3 Key Benefits and Features

Cooperate with the FTTR mastrergateway, it is plug-and-play, realizing fiber to the room and achieving true gigabit networking in every room.
The master-sub-gatewayautomatically forms a Mesh network, enabling seamless roaming throughout the house, with no sense of hot spot switching
The new generation of Wi-Fi 6 wireless technology, supporting 2X2 MIMO (2.4GHz&5GHz) and 160MHz bandwidth, can reach a physical air interface rate of 2976Mbps.

RicherLink RL841GWV-AX3

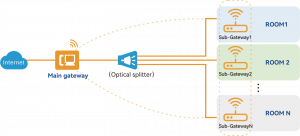

RL841GWV-AX3 is a sub-gateway product launched by RicherLink to meet the needs of fiber-to-the-room (FTTR) network construction. Its various functions and performances meet the technical specifications of ITU G.984 series standards, international standards, and industry standards, and support local adaption. RL841GWV-AX3 sub-gateways are distributed in users’ rooms and connected to the master gateway through optical fibers. They achieve intercommunication through the PON interface with the master gateway. Under the all-optical network, the sub-gateway and the master gateway automatically form a Mesh network; the sub-gateway and the master gateway can also form a Mesh network through the wireless network. It has the characteristics of high reliability, good QoS guarantee, manageable, scalable, and flexible networking, and can well meet the access needs of users for high-speed broadband

RL841GWV-AX3 product.

Parameters	Nominal value
Dimension	173×125×56mm（LWH）
Net weight	About 500g
Typical power consumption	<18W
Noise	None
Power supply	12V DC（external AC/DC adapter）
Operating Humidity	10% RH～95% RH (non-condensing)
Operating Temperature	0℃～45℃

Uplink GPON interface parameters

Parameters	Nominal value
Fiber Connector	SC/UPC or SC/APC
PON Quantity	1*GPON
Fiber Mode	Single-mode Fiber
Wavelength	RX: 1310±20nmTX: 1490±10nm
PON Interface Standard	ITU-TG.984.x
PON interface receiving rate	1.244Gpbs
PON interface transmitting rate	2.488Gpbs
TX Optical Power	-4～0dBm
RX receiving sensitivity	-22～0dBm

User-side interface parameters

Quantity	Type	Remark
4	RJ45100/1000 Base-T Ethernet Self negotiation	IEEE802.3ab Standard, Support direct network cable connection and automatic verification of connection network cable
1	RJ11	Telephone

Wi-Fi parameters

Wireless Standard		5G 802.11 ax/a/n 22 and 2.4G 802.11 b/g/n/ax 22
Parameters	Frequency	2.4G: 2.4~2.4835GHz5G: 5.15~5.825GHz
	Transmission speed	2.4G: IEEE 802.11ax：2×2, Max 574Mbps
	Transmission speed	5G: IEEE 802.11ax：2×2, Max 2400Mbps
	Channels	2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 135GHz: 36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157, 161, 165
	Data Modulation	11b:DSSS: DBPSK(1Mbps), DQPSK(2Mbps), CCK(5.5/11Mbps)11a/g:OFDM: BPSK(6/9Mbps), QPSK(12/18Mbps), 16QAM(24/36Mbps), 64QAM(48/ 54Mbps)11n:MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM,: MCSO-MCS1511ac:MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAMRate Set: MCSO-MCS911ax:MIMO-OFDMA: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM.Rate Set: MCS0-MCS11
	EIRP	2.4GHz:20dBm, 5GHz:23dBm
	Antenna	4*External omnidirectional antenna of 5dBi（2 of 2.4G，2 of 5G）

Ordering Information

Model	Product Descriptions
RL841GWV-AX3	FTTR,GPON WAN+4GE LAN+1POTS+2*2 11ax,3000Mbps
