RL804GW WIFI GPON ONU

Key Benifits and Features

ITUG.984 GPON compliant
Powerful QoS and IGMP Function
Multiple Management Options
Compatible with Main OLT Vendor

RicherLink RL804GW WIFI GPON ONU Overview

By introducing latest fiber GPON access technology, The RicherLink RL804GW WIFI GPON ONU brings carrier class high-end networking solution for advanced triple play services. It compliant with ITU-T G.984 standard, wireless for combined connection speeds of up to 300 Mbps on 11n 2.4 GHz, Layer 2/3, RL804GW GPON ONU support the comprehensive triple-play services, including data, video (IPTV or VoD), and high-speed internet access service.

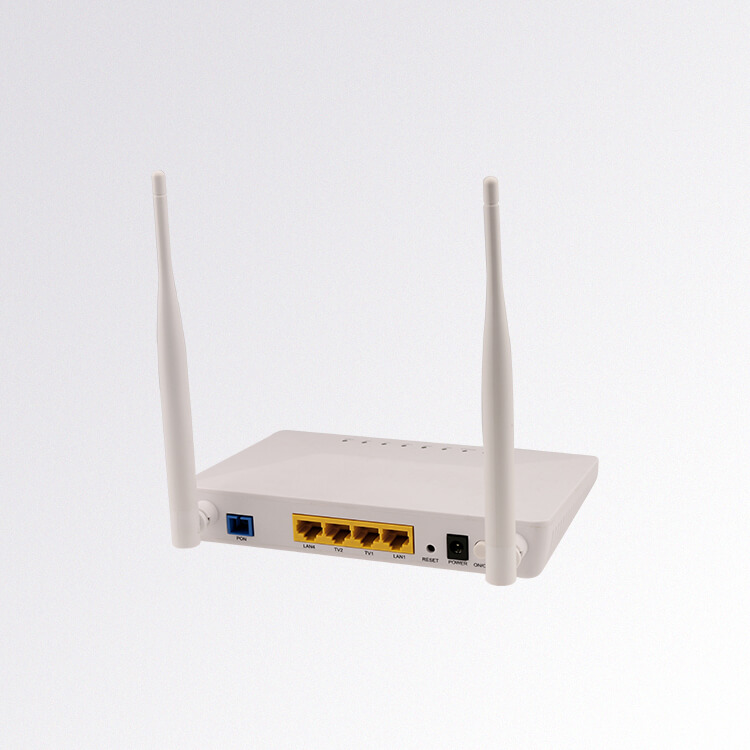

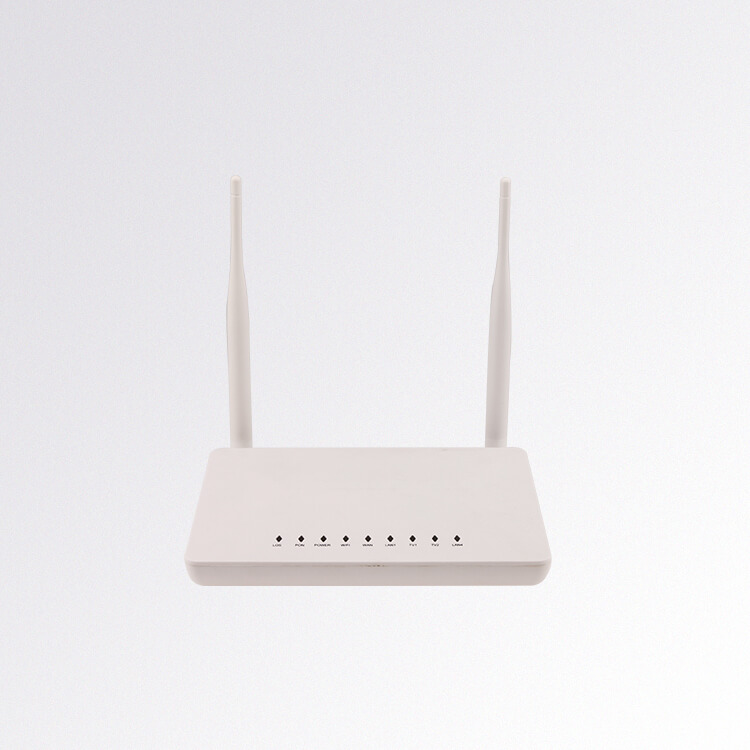

Figure 1: RicherLink RL804GW WIFI GPON ONU

WIFI GPON ONU

Product Specification

Physical specifications

GPON Interface
Rate	Upsteam: 1.244Gbps Downsteam: 2.488Gbps
Interface standard	ITU-T G.984.2/ITU-T G.984.3/ITU-TG.988 Class B+
Launch power	Min: 0dBm Max: +5dBm
Sensitivity	-27dBm
Input Power Overload	-8dBm
Service Interface
GPON Interface	1 GPON Port
Data Interface	1 GE + 3 FE
WIFI Interface	IEEE 802.11n/g/b/a wireless LAN
Antenna Type	2 external antennas
Environmental conditions
Storage	temperature -10 to 70°C, rel. humidity 10–90% (non-condensing)
Operation	temperature 0 to 45°C, rel. humidity 10–90% (non-condensing)
Power Supply and Consumption
Power Adaptor	Input: 100 to 240 V AC, 50/60 Hz; Output: 12 V, 0.5A
Consumption	≤5W
Physical specifications
Dimensions	180mm×120mm×31mm（L×W×H）
Weight	0.24KG

Key Feature Support on RL804GW

Features	RL804GW
GPON Features	Compliant with ITU-T G.984 GPON standard
	FEC (Forward Error Correction) in both upstream and downstream
	QoS scheduling based on SP or WRR between GEM port and T-CONT
	Downstream multicast GEM port and broadcast GEM port
Ethernet Feature	Support Auto-speed and MDI/MDIX auto detection
	Internal L2 switch
	Advanced data processing function,Such as VLAN label processing, flow classification
Gateway Feature	WAN support Router and Bridge mode
	Router mode supports PPPoE/DHCP/ static IP
	WAN support Internet、VoIP、IPTV、TR069
	LAN supports DHCP and static IP
	Support NAT and NAPT
WIFI Feature	300 Mbps on 2.4 GHz
	IEEE 802.11 n/g/b/a wireless LAN
	2.4 GHz band: 2400 – 2483.5 MHz
	WEP、WPA-PSK、WPA2-PSK and other encryption
OAM Feature	Standard OMCI (the embedded operations channel)compliant with ITU-T G.988
	Compliant with TR-069 standard
	Compliant with TR-098、TR-140 terminal integrated management interface
	Alarm reporting, performance monitoring

WIFI GPON ONU FTTH

Ordering Information

Model	Product Description
RL804GW	GPON ONU 1GE+3FE+11n 2*2 , 2 x External Antennas 5DBI
