RL804ECW

Key Benifits and Features

SupportTR069,NAT,DMZ,DNS features
Support Multiple ssid
Support Multiple VLAN
Support IPV6 ,PPPoE, DHCP and Static IP configuration for WAN Interface
Support IP, MAC filtering,Firewall Functionality in routed mode

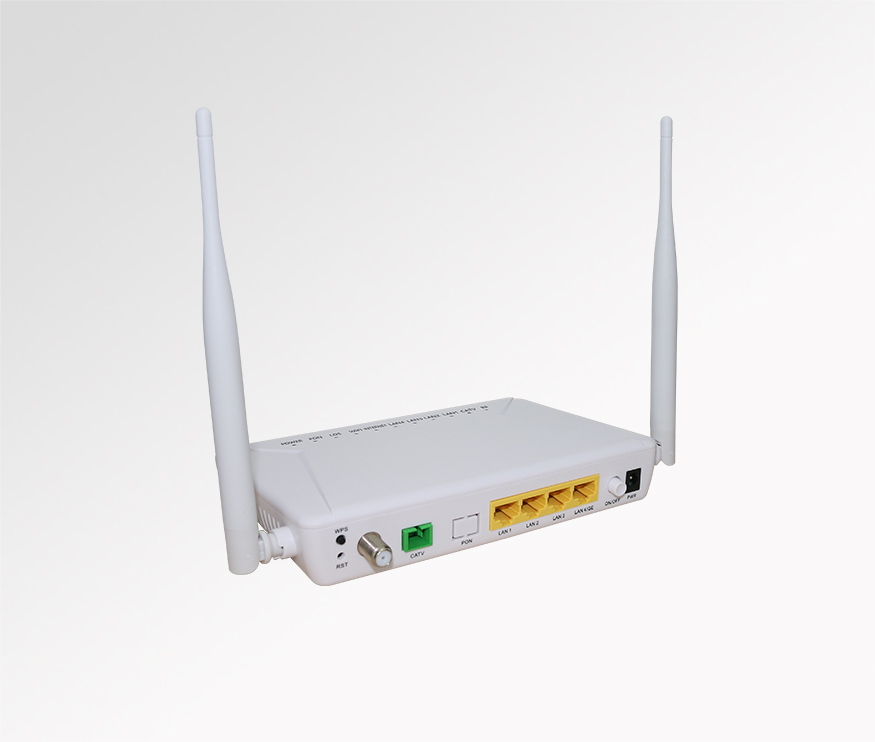

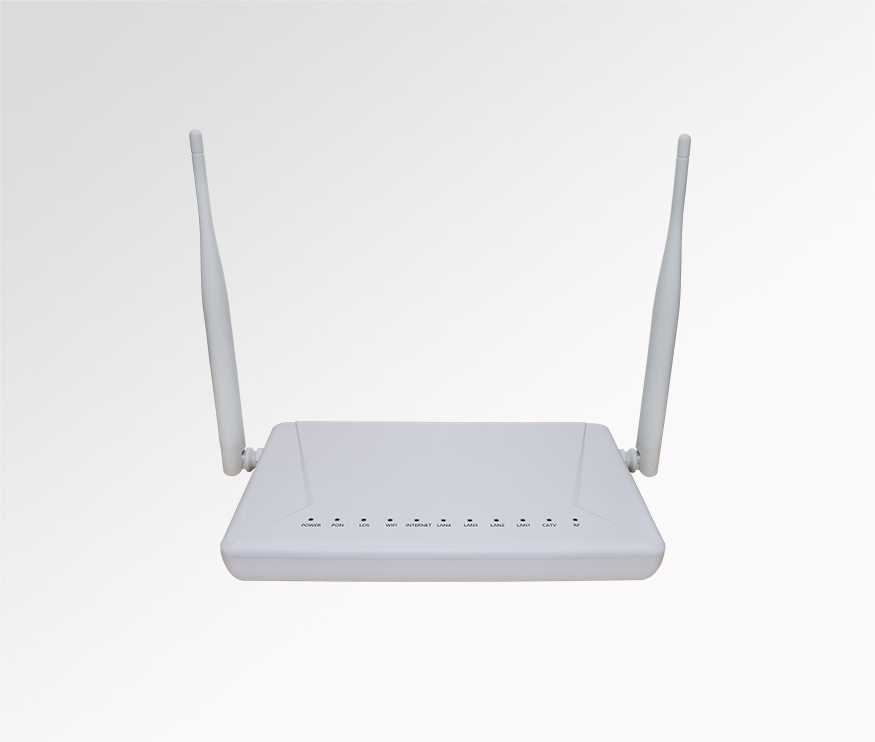

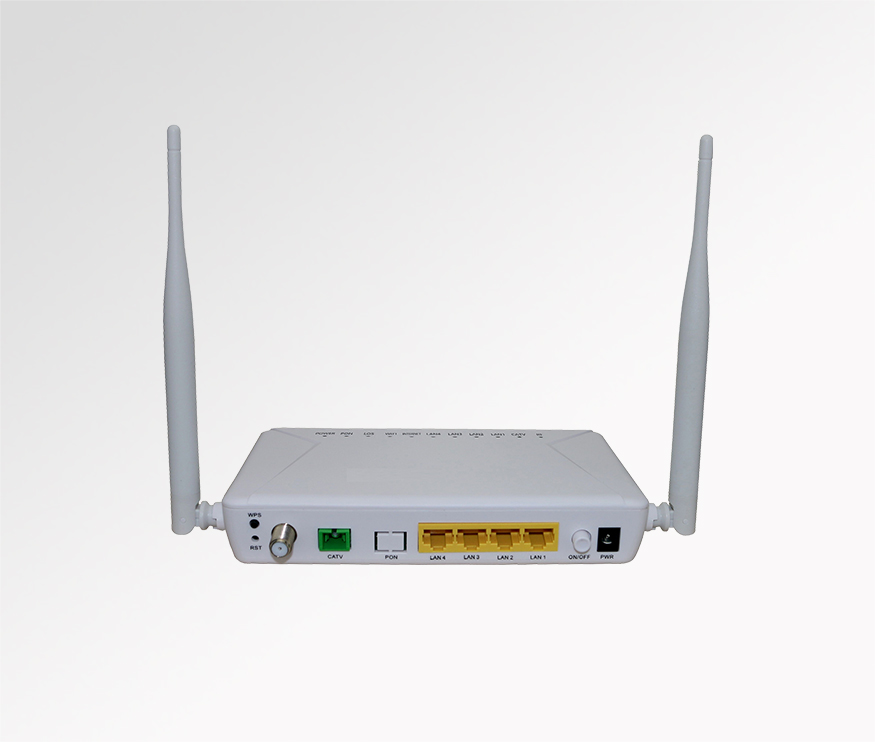

RicherLink RL804ECW Router Overview

RL804ECW is EPON ONU terminal devices designed for fulfilling FTTx and triple play service demand of fixed network operator or cable operators. This box is based on the stable and mature Gigabit EPON technology, which has high ratio of performance to price, and the technology of Layer 2 Ethernet switch,11N WiFi，CATV, WDM and high quality VoIP as well. It is highly reliable and easy to maintain, with guaranteed QoS for different service. Equipment technical performance meets the IEEE803.2ah and CTC2.1 standards.

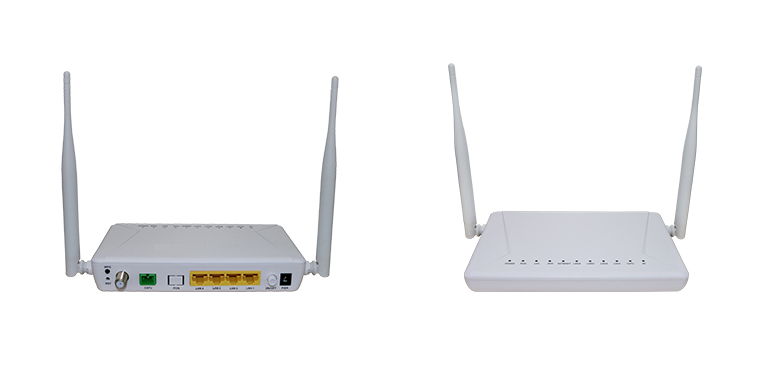

Figure 1: RicherLink RL804ECW Router

RL804ECW specification and working environment

Parameter	Nominal
Dimension	226mm×148mm×30mm（L×W×H）
Net weight	0.3kg
Typical power consumption	<9W
Noise	None
Cooling style	Naturally cooling
Power supply	12V DC（By external AC/DC adapter）
Installation style	Support PC, wall mount or put inside of information box.
Environment	-5~50℃
Atmospheric pressure	70~106Kpa
MTBF	50,000hours
MTTR	30minutes
Parameter	Nominal

RL804ECW WIFI Specifications

Standard		IEEE 802.11 b/g/n
WiFiparameter	Frequency	2.4~2.4835GHz
	Transmission speed	2.4GHz Frequency: IEEE 802.11b ：11/5.5/2/1M(Auto) IEEE 802.11g：54/48/36/24/18/12/9/6(Auto) IEEE 802.11n：270/243/216/162/108/81/54/27Mbps,up to 300Mbps
	Channel number	2.4GHz ：13
	Spread-spectrum Technique	DSSS(Direct sequence spread spectrum)
	Data Modulation	DBPSK、DQPSK、CCK and OFDM(BPSK/QPSK/16-QAM/64-QAM)
	Sensitivity@PER(Package error rate)	270M：-68dBm@10% PER；130M： -68dBm@10% PER；108M：-68dBm@10% PER；54M：-68dBm@10% PER 11M：-85dBm@8% PER；6M：-88dBm@10% PER 1M：-90dBm@8% PER；
	Transmission distance	Indoor Maximum 120 meters；Outdoor Maximum 360 meters(The distance depends on the environment)
	RF power	20dBm EIRP
	Antenna	5dBi Antennas

WIFI GPON ONU Router Netwoking

Ordering Information

Model	Product Description
RL804ECW	GPON ONU 4GE+2POTS+11n 22 +11ac 22+USB, 4 x External Antennas 5DBI
