Key Benifits and Features

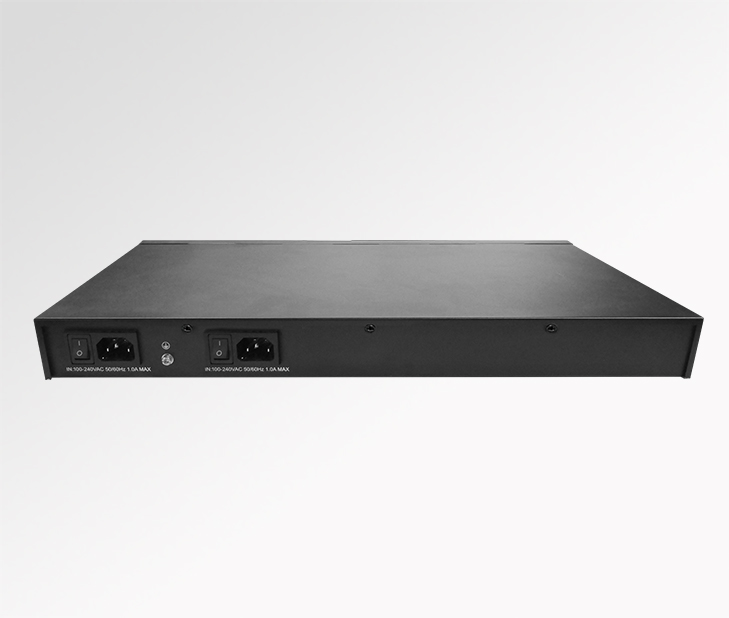

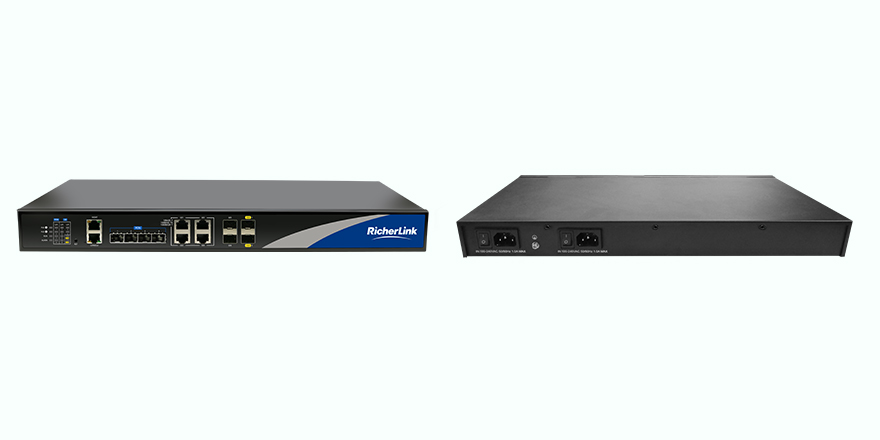

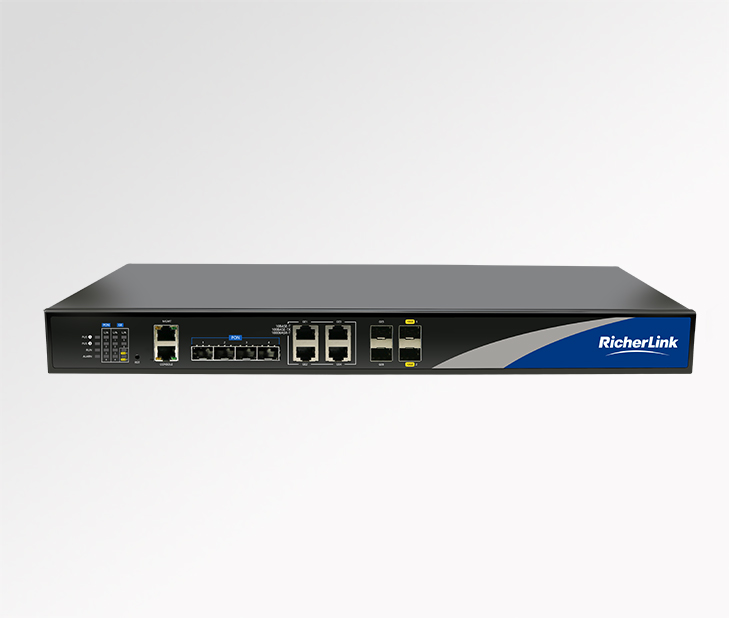

The RicherLink RL8004EL 4 port EPON OLT (Figure 1) is self-developed Compact 1U EPON OLT equipment,meeting the requirements of IEEE802.3ah and meets the EPON OLT equipment requirements of YD/T 1945-2006 Technical requirements for access network——based on Ethernet Passive Optical Network (EPON) and China telecom EPON technical requirements 3.0, possessing super EPON access capacity, carrier-class reliability and the complete security function. It can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and flexible network mode. RL8004EL can be used with NMS2000 network management system so as to provide users with the perfect solution.
The RL8004EL EPON OLT provides 4 *Downsteam EPON ports, 4 * Uplink GE ETH ports and 2 * Uplink GE SFP ports. Up to 1:64 Split ratio for up to 256 EPON users. The 1U pizzabox design is for easy installation, Maintenance and Space saving. RL8004EL 4 port EPON OLT is suitable for Broadcast three in one, video surveillance network, enterprise LAN, Internet of Things, etc.
Product Specification
| Network interface | |
| EPON interface | 4 x EPON (1.25/1.25 Gbps) |
| Uplink Optical Interface | 2 x GE SFP |
| Uplink Ethernet Interface | 4 x RJ-45 |
| PON interface | |
| EPON | IEEE 802.3ah EPON |
| Local Management interface | |
| Console | RJ-45 EIA/TIA-232 Console management port |
| MGMT | 100BASE-T out-band management port |
| Performance | |
| Switching Capacity | 96Gbps |
| Package transmit rate | 72Mpps |
| Split ratio | 1:64 |
| Maximum ONU quantity | 256 ONT |
| Power Supply and Consumption | |
| Power Adaptor | AC Input:100 to 240 V AC, 50/60 Hz; DC Input : 36V-75V |
| Redundancy Design | Double AC, Double DC or AC+DC |
| Consumption | ＜46 W |
| Environmental conditions | |
| Storage | temperature -10 to 70°C, rel. humidity 10–90% (non-condensing) |
| Operation | temperature 0 to 45°C, rel. humidity 10–90% (non-condensing) |
| Physical specifications | |
| Dimensions | 442mm×300mm× 44mm(W * D *H) |
| Weight | ＜ 4.5 KG |
Key Feature Support on RL8004EL
| Ethernet switching (L2) features | |
| VLAN | 4K VLAN entries |
| Port-based QinQ and Selective QinQ (StackVLAN) | |
| Port-based/MAC-based/IP subnet-based VLA | |
| Spanning tree | IEEE 802.1x STP/RSTP/MSTP |
| ONU remote loop detection | |
| MAC | MAC Black Hole |
| Port MAC limit | |
| 64K MAC address | |
| Port | Bi-direction bandwidth control |
| Port mirroring and traffic mirroring | |
| Service features | |
| Multicast | IGMPv1/v2/v3 |
| IGMP Snooping/Proxy | |
| IGMP filtering | |
| QoS | Base on port or user-defined rate limitation |
| Base on port or user-defined priority tag, provide 802.1P, DSCP tag ability of priority | |
| Base on port or user-defined high grade queue scheduling | |
| Priority queues and scheduler of SP, WRR and SP+WRR. | |
| Congestion avoidance system | |
| Security features | |
| User security | Anti-ARP-spoofing deceive defend |
| Anti-ARP-flooding flooding attack automatic control | |
| IP，MAC，port and VLAN binding | |
| Port isolation | |
| Device security | Defend DOS attack |
| Security IP login through Telnet | |
| Hierarchical management and password protection of users | |
| Network security | IP address、VLAN ID、MAC address and port manual binding |
| Port broadcast /multibroadcast restrain | |
| Base on source / destination MAC address,VLAN,802.1p,ToS,DiffServ,source/ destination IP(IPv4/IPv6) address,TCP/UDP port number protocol type of IP package flow classify and flow defined regulation management,support package header 80 byte depth L2-L7 ACLflow filtrate | |
| Dynamic ARP table-based binding | |
| DHCP Option82 and PPPoE+ upload user’s physical location | |
| Network management | Command-line interface（CLI）, Console, Telnet and WEB configuration |
| RMON (Remote Monitoring)1/2/3/9 groups of MIB | |
| System configuration with SNMPv1/v2/v3 | |
| NTP(Network Time Protocol) | |
| NMS2000 network management | |
Ordering Information
| Model | Product Description |
| RL8004EL | 4*EPON, 4*GE port, 2* GE SFP, Dual Power Supply |
| RL060PWRAC | AC Power module for RL8008EL |
| RL060PWRDC | DC Power module for RL8008EL |
